What is Nitrogen Injection?

Nitrogen Injection is an "enhanced oil recovery" (EOR) technology that represents the greenest way for recovering America's "trapped oil."

Nitrogen injection, also referred to as "gas injection" which uses nitrogen as the gas to improve oil recovery.

Gas injection also uses other gases in EOR applications. Other gases include natural gas and carbon dioxide or CO2. When the gas is injected into the reservoir, via an injection well, the gas expands in the reservoir to push or drive additional oil to a production wellbore.  Other gases that "dissolve" in the oil which lowers the viscosity of the oil and improves its flow rate. Gas injection, including nitrogen injection, accounts for nearly 50 percent of EOR production in the United States.




Nitrogen Injection and Enhanced Oil Recovery Solutions

ASP Flooding  Chemical Flooding  *  CO2-EOR  *  CO2 Flooding  *  CO2 Injection  *  Enhanced Oil Recovery

Heavy Oil Recovery  *  Polymer Flooding  Reservoir Stimulation  *  Solar EOR  Steam Injection  *  Upstream Oil and Gas




For Advertising, Business Development, Marketing
or Sales solutions, call or email:

Austin, Texas

marketing@NitrogenInjection.com


What are EOR Technologies?

EOR Technologies is a new company with a focus on deploying the optimum EOR technology on a "technology-neutral" basis - as determined by our clients specific requirements.

Over the past forty years, the enhanced oil recovery industry has produced a number of excellent and proven EOR technologies.  However, the optimum EOR technology for any one particular client with declining oil production, is dependent on a number of variables that must be identified and understood before selecting the correct EOR technology, including;

among others. The " optimum" EOR technology for one reservoir and pay zone may not be the optimum EOR technology for another - even within the same oil field. That's why we are "EOR technology neutral." We apply the optimum EOR technology for each client's specific requirements for maximizing our client's oil recovery, at the least possible cost.

Enhanced oil recovery represents a significant opportunity for companies with declining oil production to significantly increase their oil production and revenues through our range of EOR technologies and services.


How much more oil can we produce from our "mature" oil field and wells?

Enhanced oil recovery or "EOR" represents a significant opportunity for companies with declining oil production to significantly increase their oil production and revenues through our range of EOR technologies and services.

As seen above, there are a number of variables that determine the potential increase in production for any particular application.

With that said, some of the EOR technologies can have a significant reversal in oil production. And by "significant," this could mean anywhere from a 100% increase in oil production to a 500% increase in oil production.

Would increasing your oil production from 10 bbls/day to 20 bbls/day for a 100% increase in oil production, would that make a difference? How about going from 100 bbls/day to 500 bbls/day for a 500% increase in oil production. That's the possibility with enhanced oil recovery.


Are you ready to move forward with
EOR Technologies and start increasing your oil production?

EOR Technologies, as an independent EOR technology-neutral company has an interest in assisting companies reverse their declining oil production and offers 4 options to move forward.

First of all, the oil production must be located in the USA or Canada and we must conduct a test on the client's well(s) to make a determination of existing conditions and the optimum solution(s). There is no charge for our initial consult and evaluation.


W
hat is Enhanced Oil Recovery?

Enhanced Oil Recovery, is a technology which is used to recover the "trapped oil" in the oil reservoirs underground that were not recovered in the primary oil recovery stage.  Enhanced Oil Recovery - also referred to as "EOR" is the 3rd (third) or last/final stage of oil recovery.

When an oil well is first completed and oil production begins, this is called the primary oil recovery stage. There may be anywhere from 5% to 15% of the "original oil in place" (OOIP) in the oil well's underground reservoir that is recovered via "natural" reservoir drive.  The "natural reservoir drive" is the natural force or reservoir pressure that "drives" or displaces the oil to flow into the production well's well bore.

The secondary oil recovery stage is where additional production measures are installed wherein anywhere from 10% to 30% of the original oil in place is recovered.

According to the Department of Energy, there are 400 billion barrels of original oil in place that has still not been recovered.  Enhanced Oil Recovery has the potential to recover up to 60% of this 400 billion barrels of oil, or 240 Billion barrels of oil in the USA.


What is "mobility" and mobility control within an oil reservoir and why is it important?

The definition of mobility (within an oil reservoir) is the ratio of its relative permeability in a "porous" medium to its viscosity. By reducing water's mobility - through the increase of its' viscosity through the addition of polymer (PAM) the  properties become nearly identical to the oil within the target pay zone/reservoir.

In Chemical EOR and chemical flooding, such as "polymer flooding," water is made more "viscous" (becoming more of a gel than a liquid) by adding polymer in order to obtain a "mobility ratio" of 1 between water and oil, i.e. the same mobility for the two different fluids.

In water with low a low salinity content, a a polymer concentration of 400 parts per million (ppm) or 0.4 g/l can easily boost the viscosity of water by nearly ten times. This makes the overall chemical flooding process more efficient requiring less water.


What is Chemical Flooding

"Chemical Flooding," also referred to as Chemical EOR, is one of the types of "Enhanced Oil Recovery" (EOR) technologies used for improving oil recovery in older, declining and "marginal" oil wells/oil reservoirs.

There are a variety of chemicals used in chemical flooding to "enhance" oil recovery - a few of these include alkaline chemicals,  polymers and surfactants.

"Polymer Flooding," which has been in use for about 40 years, is experiencing greater acceptance and more applications in Enhanced Oil Recovery due to the decrease in price of polymers, particularly hydrolyzed polyacrylamide or "PAM."


What is CO2-EOR?

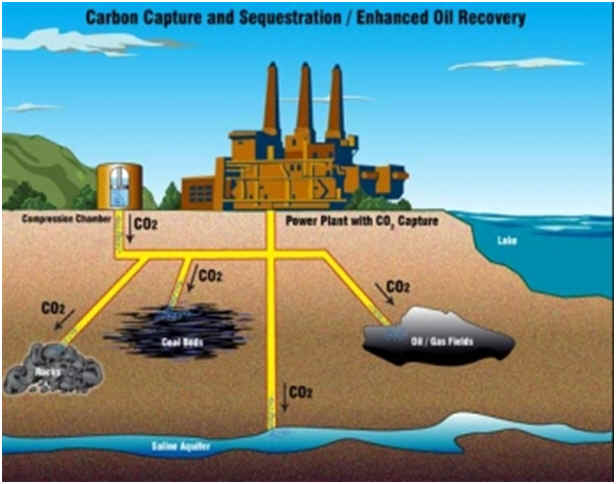

CO2 EOR is an "enhanced oil recovery" technology that injects CO2 (carbon dioxide) into an underground geologic zone (oil/hydrocarbon containing "reservoir") that contains hydrocarbons for the purpose of producing the oil. The CO2 is produced along with the oil and then recovered and re-injected to recover more oil.

When the maximum amount of oil is recovered from the reservoir, the CO2 is then "sequestered" in the underground geologic zone that formerly contained the oil and the well is shut-in, permanently sequestering the CO2.




What is CO2 Flooding?

CO2 flooding is an "enhanced oil recovery" (EOR) technology wherein CO2 is injected into a known oil containing reservoir for recovering a large percentage of the "original oil in place" that was not recovered via primary recovery methods. During CO2 flooding the carbon dioxide and the remaining oil in the reservoir "mix" above a specific pressure known as the "minimum miscibility pressure" or MMP. At pressures equal to or above the minimum miscibility pressure, the carbon dioxide acts similarly to a "solvent" flooding the reservoir and leaving only a very small amount of residue behind. At pressures below the minimum miscibility pressure, the carbon dioxide increases oil production by "swelling" the oil thereby reducing its viscosity.


What is CO2 Injection?

CO2 Injection is an "enhanced oil recovery" (EOR) technology that represents the greenest way for recovering America's "trapped oil" also known as stranded oil.

The major oil companies, when producing oil in "primary recovery" typically produce and recover the "easy oil" representing as little as 10% of the oil reservoir's "original oil in place." After recovering the easy oil, it is necessary to go into "secondary recovery" which is also referred to as enhanced oil recovery. These secondary recovery methods are expensive and sometimes only producing marginal amounts of oil. Therefore, some oil companies simply choose to plug and abandon the well and move on to the next project after only recovering as little as 10% of the oil in the reservoir.

Recovering the remaining oil in reservoirs is the purpose behind deploying enhanced oil recovery technologies which enables the remaining oil to flow, or drain from the host rock in the underground reservoir, to a production well. Enhanced oil recovery technologies produce the otherwise stranded oil from the otherwise depleted reservoir.

There are a number of enhanced oil recovery technologies and methods that have been used such as steam injection however, technologies such as these are expensive, and requires combustion of additional fossil fuel, releasing even more greenhouse gas emissions. Steam injection is particularly beneficial when dealing with production of "heavy oil."

CO2 Injection, and "CO2 Flooding," have been heralded as the greenest way to recover stranded oil as carbon dioxide frees the stranded oil easily and affordably - and after the oil has been recovered, the co2 is "trapped" in the reservoir, in a solution called "carbon capture and sequestration." In CO2 injection, carbon dioxide, under pressure, is injected between oil wells to freeing the stranded oil. At one time, water was injected to free the stranded oil, but the water mixed with the oil and the recovered liquid quickly became mostly water, that had to be separated from the oil. CO2 is a superior agent in recovering stranded oil as the CO2 naturally reduces the surface tension that traps the liquid oil to in the oil reservoir. When the oil is recovered from the production well, CO2 is also produced, but is easily separated from the crude oil because the CO2 reverts back to its gaseous state when the pressure is removed.


What is "Microbial EOR?"

Microbial EOR, is one of the newer forms of "enhanced oil recovery" technologies that has quite a few new companies all claiming they have the most effective microbe or microbes for increasing oil production in the 3rd and final stage of oil recovery.

While Microbial EOR technology appears to be a promising technology, there are many others EOR Technologies that have a longer track record and may be a better choice and more effective strategy for increasing oil production.

We represent an engineering company that provides enhanced oil recovery engineering services on a strict "vendor-neutral." They are a recognized engineering company that will identify the optimum EOR technology for your specific application and reservoir. In addition, we represent several investors and an investment bank interested in enhanced oil recovery opportunities, companies and making acquisitions of oil production suitable for enhanced oil recovery.


What is Polymer Flooding?

"Polymer Flooding" one of the leading types of "Enhanced Oil Recovery" (EOR) technologies used for improving oil recovery - particularly in older and declining oil wells/oil reservoirs. Polymer flooding is also referred to as "chemical flooding" as well as "Chemical EOR."

To further define "polymer flooding," one must also know what a polymer is.

So, what is "polymer"?

Poly = many

mer =  part

So, polymer, roughly defined, means "many parts."

In polymer flooding, the polymers used reduces the "surface tension" between the oil and the oil-containing rock within the oil reservoir, "freeing" the trapped oil making it easier to flow to the production well(s).

What Polyacrylamide?

Polyacrylamide powder or "PAM" is a non-toxic powder that is a long-chain molecule first used in cleaning wastewater at wastewater treatment plants. In polymer flooding, PAM makes the water "gel" greatly improving the production of oil.  In polymer flooding, polymer, or polymers, are used to make the water injected into the (injection well) oil reservoirs more "viscous" or thick, much like a gel.  This greatly improves oil production, and is particularly beneficial in heavy oil recovery.

Several of the leading benefits of polymer flooding include:


What is Solar EOR?

Solar EOR, also referred to as "solar enhanced oil recovery" is a new energy technology which utilizes concentrating solar power plants (with "parabolic troughs") to capture the energy of the sun - instead of natural gas (which fires boilers) - for steam generation wherein the steam is injected into oil reservoirs to produce oil through the standard enhanced oil recovery technologies.

Unfortunately for the nascent Solar EOR industry and fairly-established concentrating solar power industry, natural gas prices have plummeted well below $3.00/mmbtu, making Solar EOR a technology that cannot be justified or considered by either oil and gas companies/producers or investors wanting a competitive return on their investment.

Additional problems with Solar EOR are the problems relating to the days when the sun isn't shining - rain, fog, drizzle - and there isn't enough (or any) steam that is generated.  Even when the sun is shining, the energy produced from the sun from the Solar EOR system generates steam for only about 5 hours/day. As oil and natural gas companies engaged in enhanced oil recovery operate 24 x 7 x 365, few, if any, will find much benefit being able to generate steam for only 20% - 25% of each day.  These companies engaged in enhanced oil recovery operations will therefore, still be required to have a natural gas fired power plant for steam generation purposes, for their operations. There is no learning curve for these oil and natural gas companies engaged in enhanced oil recovery. Oil and natural gas companies know and understand natural gas fired power plants - typically having their own natural gas to run the power plant.

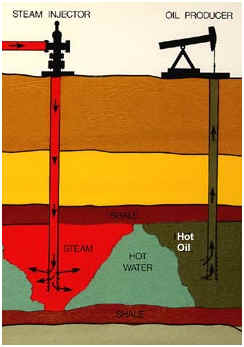

What is Steam Injection?

Steam Injection is an "enhanced oil recovery" (EOR) technology that represents one of the most efficient methods for recovery of "trapped oil," particularly stranded oil that is considered to be "heavy oil." Steam Injection is the primary method of "thermal stimulation" and production of oil in most oil reservoirs. There are several different forms of the technology, with the two leading methods known as; Cyclic Steam Stimulation and Steam Flooding. Both variations of Steam Injection are used to produce oil in oil reservoirs that are relatively shallow and which contain crude oils which are known to be "heavy oil." Heavy oil is "viscous" at the ambient temperatures within the native underground oil reservoir and formation.


The major oil companies, when producing oil in "primary recovery" typically produce and recover the "easy oil" representing as little as 10% of the oil reservoir's "original oil in place." After recovering the easy oil, it is necessary to go into "secondary recovery" which is also referred to as enhanced oil recovery or tertiary recovery. These secondary recovery methods are expensive and sometimes only producing marginal amounts of oil. Therefore, some oil companies simply choose to plug and abandon the well and move on to the next project after only recovering as little as 10% of the oil in the reservoir leaving behind what is referred to as "trapped oil."

Trapped oil - in reservoirs where enhanced oil recovery technologies are deployed to enable the stranded oil to flow, or drain from the host rock in the underground reservoir, to a production well. Enhanced oil recovery technologies produce the otherwise stranded oil from the otherwise depleted reservoir.


What is Surfactant EOR?

Surfactant EOR - or surfactant enhanced oil recovery, is one of the promising types of "enhanced oil recovery" or "EOR," technologies for the recovery of "trapped oil" (or "stranded" oil).

What are "surfactants"?

Surfactants are a broad group of mostly non-toxic "soaps" or chemicals (in both powder and liquid form) that are commonly found in soap, detergents, dishwashing soap and even shampoo.  The type of surfactants used in surfactant EOR are of the industrial-strength variety that reduce the viscosity of the oil in the reservoir that makes the oil easier to recover.


What is Surfactant Flooding?

Surfactant Flooding - also referred to as Surfactant EOR is one of the leading types of "enhanced oil recovery" or "EOR" technologies that are used to free "trapped oil" wherein surfactants - or soaps, are used as the chemical that is injected in the reservoir to increase oil production.


What is "Trapped Oil"?

"Trapped Oil," also referred to as "stranded oil," is the oil that is normally not recoverable in an oil field/reservoir. A number of reasons may determine the oil to be trapped, mostly related to either geology or economics or a combination of the two.

When an oil well is first completed and oil production begins, this is called the primary oil recovery stage. Anywhere from 5% to 15% of the "original oil in place" (OOIP) in the oil well's reservoir is recovered via "natural" reservoir drive, meaning natural forces drive or displace the oil into the production well's well bore.

The secondary oil recovery stage is where additional production measures are installed wherein anywhere from 10% to 30% of the original oil in place is recovered. When the secondary oil recovery stage is complete - and ready for Enhanced Oil Recovery - 55% to 85% of the original oil in place remains. At this point, many companies may determine that the economics are not justified to recover the remaining "trapped oil" and may decide to plug and abandon the well.

The Department of Energy and petroleum engineers are on record in stating that Enhanced Oil Recovery has the potential to recover up to 60% of the remaining 55% to 85% of the trapped oil.

In the USA, Enhanced Oil Recovery has the potential to recover up 240 Billion barrels of oil. At $100/bbl, Enhanced Oil Recovery represents a $24 Trillion market opportunity (in the U.S.A.).
